DV Flow VSCode Extension

DV Flow provides an extension for the VSCode development environment to assist in developing and using DV Flow descriptions.

Installing

The extension can be installed from the VSCode Marketplace.

Configuring

The DV Flow extension uses DV Flow Manager to obtain much of the data that is displayed. The VSCode extension must be have access to a Python interpreter with access to the DV Flow Manager package.

The DV Flow extension searches for the appropriate interpreter as follows:

  • Checks the ‘dfmPath’ setting in VSCode settings

  • Checks the python.defaultInterpreterPath setting in the workspace settings

  • Checks for the existence of an IVPM packages directory

  • Checks the PATH for the python3 executable

_images/dfmPath_setting.png

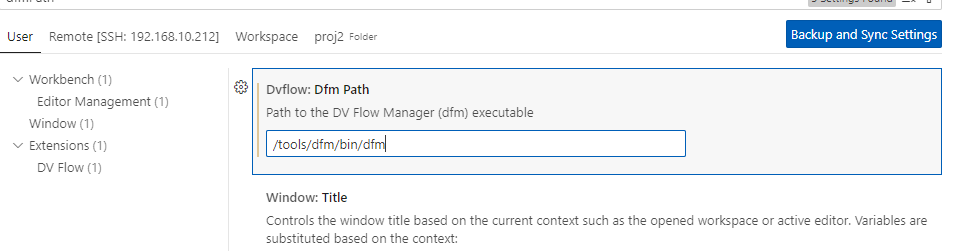

You can configure the dfmPath settings in the VSCode settings. The path is to the dfm executable.

Features

Workspace View

The DV Flow extension contributes a workspace outline view. This view shows information about the tasks defined in the workspace package.

_images/dv_flow_workspace_view.png

This view is always active, and can be manually-refreshed via refresh button.

Single-clicking (selecting) an entry in the tasks collection will open an editor on the task’s declaration.

Static Graph View

A graphical representation of a task’s execution graph can be opened from the task entries in the workspace view.

_images/dv_flow_open_graphview.png

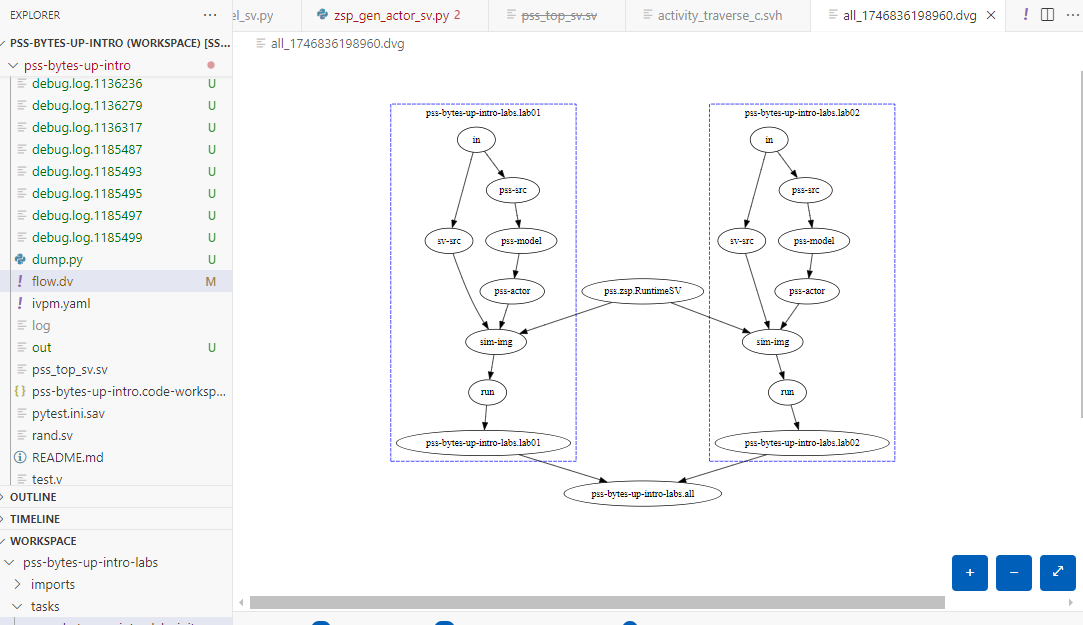

This will open a new tab containing a graphical view of the task graph.

_images/dv_flow_graphview.png

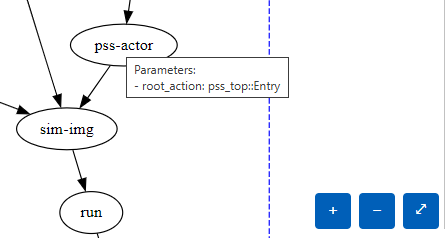

Hovering over nodes in the graph will show the value of the task’s parameters.

_images/dv_flow_hover_graphview.png

flow.dv Editor

A simple YAML text editor is provided for editing flow.dv files. All files named flow.dv are associated by default. The language dvflow can be used to associate additional file extensions with the editor.
